We have 2 identical sites on different servers. www.satellitesuperstore.com & www.satellitesuperstore.co.uk
If one site is down, please use the other one
As a family based company we offer telephone sales and advice. Tel. 01207 544664
Technomate, Manata and EMP Centauri
2, 3, 4, 8 and 16-way DiSEqC switches
4-way (left), 2-way (middle) and 3 way (right). 8-way (below). 16-way (below).
High quality Diseqc switches from Technomate. The two-way switch enables two LNBs to be connected to one receiver.
The four-way switch enables four LNBs to be connected to one receiver all down one down one cable. Automatic
switching between the satellites is then possible. The Diseqc switch is usually cable tied to the back of
the dish. These Titanium switches are very small. The plastic cover covers the internal metal switch and the
connections. They are waterproof but
amalgamating tape should be
used on normal F connectors
OR
compression F Connectors can be used
without tape as these connectors are completely waterproof.
It is very difficult to find 3-way diseqc switches and the Manata units are made in the eu and are very high quality.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
Technomate 2-way DiSEqC switch
Order code DIWITCH
£7.95
Technomate 4-way DiSEqC switch
Order code DIWITC4
£9.95.
Manata 3-way DiSEqC switch
Order code DIWITC3
£19.95.

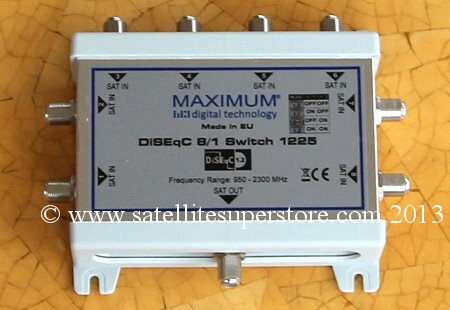

EMP Centuari 8 way and 16 way
DiSEqC switches
Switchable between normal 2-way/4-way and 8-way or 16 way. Waterproof.
Note. Receiver needs diseqc 1.0 software for 2-way and 4-way and DiSEqC 1.1 software for 8 way and 16 way.
These two Diseqc switches are either DiSEqC 1.0 or DiSEqC 1.1 but when used with 1.0 they only work as 2 way
or 4 way. Software must be 1.1 for 8 way or 16 way use. Manufactured in the EU. Very high quality.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
EMP Centuari 8 way DiSEqC switches
Order code DIWITC8
£29.95
EMP Centuari 16 way DiSEqC switches
Order code DIWITC16
£49.95
EMP Centauri Diseqc Generator
This is a useful product if you have a satellite receiver which does not have Diseqc switching built into it.
Use this Diseqc generator to allow switching to a second, third or fourth satellite using
Diseqc switches in a multiple LNBs on one dish installation.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
EMP Centauri Diseqc Generator G1/PCNman-1 Diseqc Inserter
Order code DISEGEN
£64.95
Triax HD Modulator with TV eye control
Important - Unlike many other modulators on the market, this one can be controlled using the TV eye system. It has
control built into it. (Some people already have a TV eye system in their home). Just put a tv eye on the end of the
cable going into the back of your (e.g. bedroom) TV and you can control the satellite receiver in the main room from
the bedroom. Also unlike other modulators, this one has and HDMI loop-through which means when the HDMI lead
goes into the modulator, it also loops out to go to the TV next to it. Most modulators do not have this function
and if not, an additional HDMI splitter is needed. No splitter is needed with this modulator.
The HD modulator, has an HDMI input and a coaxial cable output. Many houses already have a UHF distribution system.
A similar system in the past would take the coaxial output from the UHF (RF) connection of a receiver, maybe to an existing
distribution amplifier in the loft, then cables down to the rooms. This new HD modulator will work with your existing
distribution system. Satellite receivers now have an HDMI output. Connect the HDMI output from your satellite receiver
into the HD modulator. The coaxial output of the modulator can go direct to a second TV elsewhere in the house, or it
can go to a distribution amplifier (which may be in the loft) and then to many rooms. This coaxial cable then plugs into the
digital tuner input of your TV. All you then have to do is tune in the channels on your TV and one of the channels will be the
satellite receiver from the main room. This can be in full 1080p HD. Additional notes. The old UHF system in use for, probably
30+ years from an RF output was analogue and not very good quality. Usually there was an RF modulator built into the satellite
receiver and you had to tune in the analogue tuner of your TV set. Today many flat screen sets have both analogue and digital
tuners. Since there is no analogue TV any more the analogue tuner only tends to be used for tuning the old UHF, RF distribution
system but the new HD modulator works through the digital tuner of the TV in full HD. There have been some HD distribution
system which use CAT 5 cable but this system of HD over coax means that the old existing distribution system using coax can
be used and will it all work in full HD. There is an aerial loop through on the back of the modulator (just the same as the
old analogue loop through in the back of a satellite receiver with RF in and out) and so if the TV aerial can go into the
modulator, the aerial will then be carried with the satellite receiver signal to every TV through the distribution system in
the usual way. Also remember out dedicated telephone support line just for our customers is there to help you
A TV eye is included but additional TV eyes can
be added.
Click here to order an HD Modulator.
Triax 4K Splitter
This splitter can be used with the
HD modulator. It would be needed if a 4k TV was being used. Connect the
splitter output to the modulator. Connect one input to the satellite receiver and the other to the TV. This makes sure
a 4K signal will loop through the splitter from the satellite receiver to the TV. The modulator will supply other
TVs in the house with full HD via the coaxial cable. The output is downscaled to full HD for the modulator.
click here to order.
Labgear UHF Modulator
Many high definition receivers do not have a UHF modulator built into them (this is the Aerial in and out connections
on the back) The reason for this may be that manufacturers do not consider UHF to be of sufficiently high quality to
justified inclusion in an HD receiver, or it may be just to reduce costs. However, many people do have a UHF
distribution system in their home so that they can view channels in many rooms. If the only outputs on a receiver
are scart and HDMI it is not possible to connect into the distribution system and “pipe” the satellite around the
house. This modulator solves this problem. You can scart the satellite signal into the modulator and feed the UHF
output into the distribution system. The frequency (channel) can be set so that it does not interfere with other
items (aerial, DVD etc.) that may also be on the system. This is a very useful product at a low price. If you want
to distribute the signal around the house AND you want to control the receiver as well, you need the
Triax Tri-Link
below.

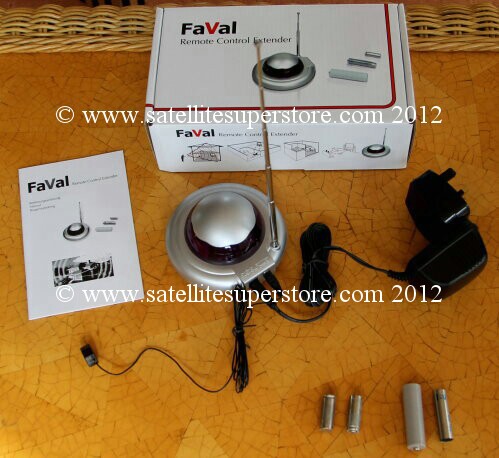

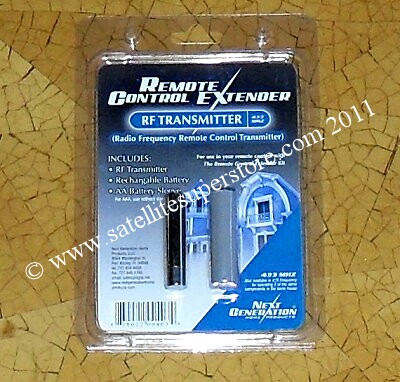

Another alternative is to use the modulator with a
radio remote extender. This will also offer
control from any room.
This type of product may need you to ring our technical support line. You can see from our descriptions
we know these products very well and can sort out any problems you may have.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
Labgear UHF Modulator
Order code, MODULAT
Only £39.95
Triax Tri-link

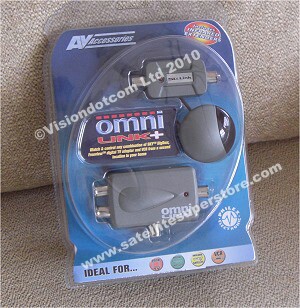

The Triax Ti-Link combines the omni link and the modulator (above) all in one box AND has a through
scart connection so you don't lose a scart input when you use it.
If you are buying a freesat receiver or a non Sky receiver WITHOUT a UHF outlet, you will need this kit if
you want to distribute TV around the house with control in each room using a UHF distribution system. (Cabling is needed)
(Many houses already have an existing UHF distribution system with an amplifier in the loft and cables to each room.)
The built in modulator converts the scart output of your receiver to a UHF coax outlet and the internal link is

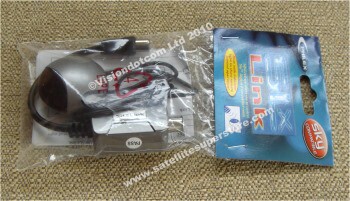

a special TV eye system for non Sky receivers so that your handset has control in other rooms.
This system then works with standard (Sky designed) TV eye. A TV eye is included. The coax output can go
direct to another room, to to a
distribution amplifier and then to many rooms. Extra
TV eyes would then be needed.
If you want to control up to 4 satellite receivers in other rooms you would then also need a
multiroom
combiner.
This type of product may need you to ring our technical support line. You can see from our descriptions
we know these products very well and can sort out any problems you may have.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
Triax Trilink for analogue TV tuner inputs.
Order code, TRIAXTR
Only £64.95
Humax USB W-LAN stick Internet
wireless connection device
Humax USB LAN stick. Connect your satellite receiver to your router wirelessly
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
Humax USB W-LAN stick Internet wireless connection device
Order code HUMUSLA
Special offer
£14.95
AB Switch and ABC Switch.
Manually switch 1 LNB to 2 or 3 satellite receivers or switch 2 or 3 LNBs to 1 receiver.
Available options for single and twin LNBs, single and twin tuner receivers.
These is a mechanical switches enable two or three LNBs to be switched to one satellite receiver.
These is a mechanical switches enables one LNBs to be switched to two or three satellite receivers.
Options - Used with single LNBs, twin universal LNBs or twin wideband LNBs. Use with single or twin tuner receivers.
Satellite cable switching. Rotary switch. F connector inputs and outputs.
Pictured in use. Connection cables not included.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
2 way satellite AB Switch. Single inputs and outputs.
Order code AVSWIT1
Only £17.95
2 way satellite AB Switch. Twin inputs and outputs.
Order code AVSWIT2
Only £22.95
3 way satellite AB Switch. Single inputs and outputs.
Order code AVSWIT3
Only £19.95
3 way satellite AB Switch. Twin inputs and outputs.
Order code AVSWIT4
Only £27.95
Triax Aerial and Satellite
Combiner / Splitter.
This combiner will combine a terrestrial TV signal and a satellite signal into one cable. e.g. If fitted in the loft,
both satellite and aerail (UHF) signals can be sent to a room down one cable. The two signals can the be separated
using the correct
outlet plate from our multiswitches page. Use the
"Triax UHF and Satellite triplexing outlet plate"
order code "
TVRADSA" to split the signal at the far end in the room, or, if you are not intending to fit a plate
on the wall, use a second combiner / splitter, turned around. to act as in inline splitter and covert the end
of the single cable into 2 cables, one for satellite and one for UHF (e.g. TV aerial) (or CCTV).
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
Triax Aerial and Satellite Combiner, Splitter
Order code ASCOMBI
ONLY £4.95

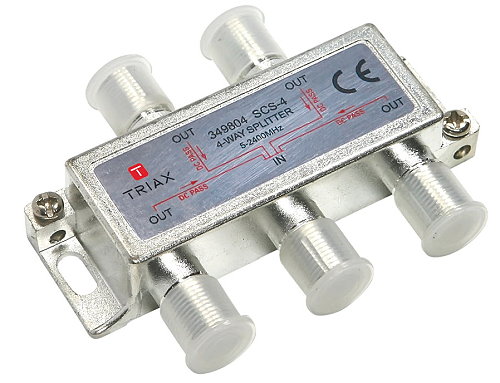

Triax or Primesat IF or UHF
combiner / splitter. 2-way or 4-way.
The two way combiner will combine two UHF signals. e.g. CCTV and an aerial signal. It is wideband (not filtered).
on both inputs and so it can combine two UHF sources (e.g. before feeding them into a multiswitch). Alternatively
it can also be used as a splitter if connected the other way round. It could be used to split two satellite signals
but then the receiver on one output would control the band an polarity of the other output. (The best way to obtain
two satellite signals from one cable is a twin LNB and a

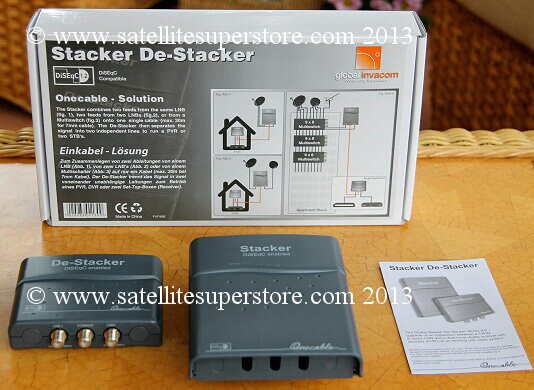

Stacker Destacker). Two versions are available,
2 inputs one output or 1 input and two outputs and 4 inputs 1 output or 1 input and 4 outputs. The Triax 2-way combiner
has DC pass on both sides in the "combining" direction. (If used with a
multiswitch, the output of a
TV, FM and DAB
combiner can be fed into one of the inputs of this combiner and the other input fed with the UHF from the CCTV output.
If the CCTV device does not have a UHF output you may also need a
modulator to convert composite to UHF.)
The Triax SCS-4 4-way splitter has DC pass on all 4 outputs towards the input.
Note Triax have updated their 4-way splitter part number from 349804 to 349828
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
Triax 2-way IF or UHF combiner/splitter. DC Pass Triax 349802.
2 inputs 1 output or 1 input & 2 outputs
Order code, TRCOMB2
ONLY £6.95
Primesat MS41 4-way IF or UHF combiner/splitter.
4 inputs 1 output or 1 input & 2 outputs
Order code, TRCOMB4
ONLY £9.95
Triax SCS-4 4-way IF or UHF combiner/splitter. Triax 349824
4 inputs 1 output or 1 input & 4 outputs. DC pass.
Order code, TR4WAYS
ONLY £11.95
Primesat 22KHz tone generator.
This is an in-line, line powered 22KHz tone inserter.
e.g. It can be used to inject a 22KHz tone into a line to switch a universal LNB from low band to high band.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
Primesat 22KHz tone generator. 22KHz tone inserter.
Order code 22KTONE
£24.95
Freesat or Sky in another room without cables.
Available with or without handsets.

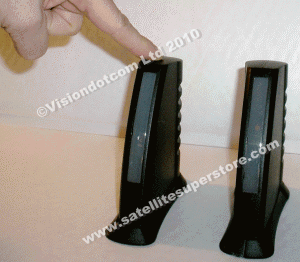

Video Senders
Video senders send the signal to your remote TV, AND transmits the remote commands back
through the sender system for full control. Buying an extra remote for the second
room makes control even more convenient. They are completely legal.
Watch TV (Send video) to another room without cables. Very high quality pictures & sound.
As good as an AV link and much better quality than a UHF cable link.
(The remote TV must have a Scart socket.)
See the
video senders page.
Europlug 2-pin to 3-pin adapter.
At last a solution to the 2-pin plug on your new satellite receiver. No need to cut off 2 pin plug an
invalidate warranty. Simply put plug into 3-pin housing. Closing clamps it in place.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
1 Europlug adapter.
Order code, EUROPLG
£2.95
10 Europlug adapters.
Order code, 10EUROP
£25.00
2, 4, 6, 8 and 16-way distribution amps. Powered
These amps work with Sky receiver, freesat receivers and all other satellite receivers.
If you don't have a Sky receiver you may need an
Omnilink or
Trilink for TV eye control. With a later
Sky HD box you may need an
iolink for control.
Extending your TV to up to 16 other rooms. A mains powered type must be used when more outputs than
4 are required Full details of how this is done is towards the bottom of this page. Extending your
TV to 2, 4, 6 8 or 16 other rooms. Powered and unpowered typres. If mains power is available in
the location where the amp is to situated, it is best to use the powered type as this will help
to re-inject the 9V for the TV eyes to work well if cable lengths are long. If a power socket is
not available, use the unpowered type. They receive their power from the 9 volts on the RF 2
outlet of the Sky receiver (which must be turned on in the menu whichever type is used).
For larger houses and longer cable runs, use the professional 8-way amp for all applications.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
2-way distribution amp. Powered
Order code 2WAMPPO
£16.50
2-way distribution amp. Triax line powered amp. Triax part number 370402
In stock.
Order code 2WAYDIS
£17.95

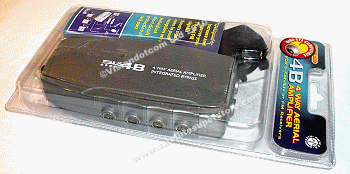

4-way distribution amp. Powered
Order code 4WAMPPO
£19.95
6-way distribution amp. Powered
Order code 6WAMPPO
£23.95
8-way distribution amp. Powered
Order code 8WAYDI1
£26.95
High output professional 8-way & 16-way powered amps.
These amps work with Sky receiver, freesat receivers and all other satellite receivers.
If you don't have a Sky receiver you may need an
Omnilink or
Trilink for TV eye control.
With a later Sky HD box you may need an
iolink for control. Extending your TV to up to 16 other rooms.
A mains powered type must be used when more outputs than 4 are required Full details of how this is
done is towards the bottom of this page. This is a professional 8 way amp that provides a
significant gain. With cheaper amps the signal is amplified to make up for losses in the
splitting process but the resultant gain may only be "1" and so little real amplification
takes place. The Labgear professional amp is different. It provides enough gain for long
cable runs in larger houses so that the picture at the end of the long cable is still very
good. Even if only a 2 way, 4 way or 6 way amp is needed, if the cable runs are long it
would be advisable to use this unit. A long cable run would be 25+ metres. We have fully
tested this unit in a large house and when the SLX 8 way unit above produced a grainy
poor picture in two distant rooms, the Labgear unit, once substituted in, provided a perfect picture.
Shipping options.
Small orders (e.g. Items up to 1.5Kg and with a total value of over £14.00) - Free UK delivery (including offshore islands).
Choose - "
UK - small items - free delivery." - UK shipping option No 3. Sent by Royal Mail.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post." shipping option.
Minimum order value for free UK delivery is £14.00. Under £14.00 select the £3.00 delivery charge.
LABGEAR High output professional 8 way powered amp.
Extending your TV to up to 8 other rooms.
Order code 8WAYPRO
£49.95

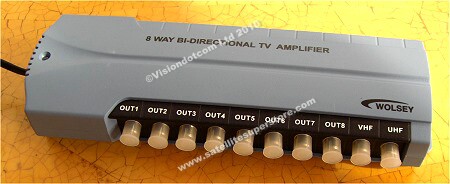

Triax Wolsey range professional 16-way powered amp.
Extending your TV to up to 16 other rooms.
Order code 16WAYPR
£69.95

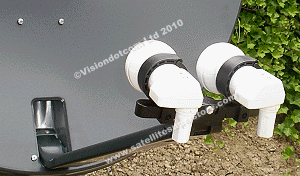

LNB kits for 2, 3 and 4 satellites.
Toss Lead Hub & Toss lead
Plug in three optical Toss leads for digital sound. One output lead goes to TV or AV amp.
3 in and 1 out. Switch each of the 3 inputs to one output.
Solves your Toss lead problems if unit only has one Toss lead input.
Optical Digital TOS lead
for Dolby Digital 5.1 connections.
Many receivers have an optical Dolby Digital output. E.G.
Sky Plus and the Sony Sky Digital,(both models
have optical digital sound outputs.) This high quality 2m long "TOS" lead connects between the receiver
and the Dolby Digital AV amplifier or TV. At 2m long it should reach for most situations.
High quality gold tipped metal plugs.
Click here for Toss lead hub & toss lead
3m high quality SVHS lead.
Ideal for use with a Sky Plus receiver. Connect between the high quality S video output of a Sky Plus into an
S input on your TV or AV amplifier. The S Lead and TOS lead above insures the best possible picture and sound quality.
At 2m long it should reach for most situations. Quality metal gold tipped plugs.
Click here for SVHS leads
Outlet plates.
Single F connector outlet plate.
For fitting on the internal walls as a dish point socket.
A surface back box is available if required.
Available from the
Multiswitches page.
Double F connector outlet plate
with screws (without back box)
For fitting on the internal walls as a dish point socket.
Back box above if required.
The twin outlet plate is ideal for Sky + and sky HD or any twin tuner receiver.
Whilst it may be possible to buy cheaper twin outlet plates, these are the high quality "Maxview" type.
Available from the
Multiswitches page.
Triax UHF and Satellite outlet plate.
This unit allows one cable to carry the UHF TV aerial and satellite (e.g. from a multiswitch) to a room.
There is also a UHF return connector for an additional cable to take the UHF back to a central area for
distribution round the house. Or, the return can be used to bring a second UHF or VHF signal to the
room using a second cable. Available from the
Multiswitches page.
Triax UHF and TWIN Satellite outlet plate.
This unit allows one cable to carry the UHF TV aerial and satellite (from a multiswitch) to a room.
A second cable from the multiswich carries a satellite signal for a second receiver or twin tuner receiver.
There is also a UHF return connector for an additional cable to take the UHF back to a central area for
distribution round the house. Or, the return can be used to bring a third UHF or VHF signal to the room
using a third cable. Available from the
Multiswitches page.
Triax UHF, phone and TWIN Satellite outlet plate.
This unit allows one cable to carry a UHF TV aerial signal and a VHF radio signal and satellite (from a multiswitch)
to a room. The radio signal could be FM or DAB if the appropriate aerials are fed into the multiswitch through
a combiner. A second cable from the multiswich to the outlet plate can carry a satellite signal for a second
receiver or twin tuner receiver. There is also a UHF return connector for an additional cable to take the UHF
back to a central area for distribution round the house. Or, the return can be used to bring a third UHF or VHF
signal to the room using a third cable. A telephone point is also included. Available from the
Multiswitches page.
See our other web site at-
www.primesat.eu
This site includes many products that are exclusive to the Satellite Superstore.
The site contains -
• Products that we manufacture (e.g. We have manufactured heavy duty wall mounts and ground stands since 1991).
• Selected products which have our own Primesat brand name and have been prepared to our specifications.
• Selected products where we have been appointed the authorised UK or European distributor by the manufacturer.
www.primesat.eu is an information site. Here you will find full specifications and many detailed pictures.
To buy any of these products, simply order them on this web site.
Link to our own satellite museum site
Satellite Museum. A museum of vintage satellite receivers.
See www.satellitemuseum.com
For old satellite receivers with knobs on and read about "A History Of Satellite TV".
Also see
www.rewindmuseum.com. A Museum of vintage consumer electronics.
Vintage reel to reel video recorders. Vintage VHS and Betamax VCRs. Vintage video cameras. Vintage
Laser Disc. Vintage Computers. Old telephones. Old brick mobile phones. Vintage Hi Fi, Old reel
to reel audio and early audio cassette decks. Including, the history time line of vintage
consumer electronics ... and much more .....
It is well worth a visit.
Only The Satellite Superstore brings you
great products, advice and it's own museum.
You may be interested in two other web sites.
www.1952chevytruck.com
This web site shows all of the restoration process and the modifications to this truck.
In addition, there is a hard high quality tonneau cover on a new web site
at www.classictonneaucover.com for the 1947-53 Chevy truck.
Contacting us.
Unlike many other companies we are happy to answer questions on the phone.
Tel. (UK) 01207 544664 and 01207
544224
International Tel. + 44 1207 544664.
Before sending questions via e-mail please check-out our
Frequently Asked Questions as
this could save
time.
If you have any questions & comments regarding this site's content, or you need advice please ....
click here to go to our contact forms.
Copyright © 2019 Vision International. All rights reserved.
