As a family based company we offer telephone sales and advice. Tel. 01207 544664
Multiswitches menu page - scroll down
"Probably the widest range of multiswitch equipment in the UK (and the EU?)"
Click here for advice- what are multiswitches for?
5 input powered multiswitches 5 input powered multiswitches Triax 5 input powered multiswitches 5 input cascade multiswitches EMP cascade multiswitches SwitchBlade multiswitches with direct fibre input Whyte powered multiswitches which work with quad, octo & quatro LNBs. (Pro range) powered

Whyte 5X8
Whyte 5X12
Whyte 5X16
Whyte 5X24

EMP powered multiswitches which work with quad, octo & quatro LNBs. (Pro range) powered

EMP Centauri 5X8
EMP Centauri 5X12
EMP Centauri 5X16
EMP-Centauri 5X20
EMP-Centauri 5X24
EMP-Centauri 5X28

EMP-Centauri 5X40
EMP-Centauri 5X60



Triax TMS 5 input powered multiswitches which work with quad, quatro and octo LNBs. Powered

Triax 5X8
Triax 5X12
Triax 5X16
Triax 5X24
Triax 5X32





Triax TMS 5 input range cascade multiswitches

Triax 5X8
Triax 5X12
Triax 5X16
Triax 5X24
Triax 5X32



EMP Cascade multiswitches

12 and 60 output EMP Cascade multiswitches

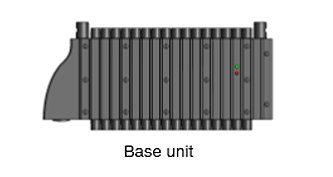

SwitchBlade multiswitches with direct fibre input.

8 output SwitchBlade multiswitch
16 output SwitchBlade multiswitch
RTriax Sky Q multiswitches

9 input powered multiswitches

13 input 40 output powered multiswitch

Ethernet, satellite and terrestrial over coax multiswitches

Multiswitch
advice


Sky Q™ interface.

Convert your quad LNB to Sky Q

Triax Sky Q™ interface. (4-OUT)

Global Sky Q™ interface. (2-OUT)

Sky Q™ and freesat 4K recordable dSCR multiswitches.

Triax Sky Q™ multiswitches.
Triax Sky Q™ 5X4
Triax Sky Q™ 5X8
Triax Sky Q™ 5X12
Triax Sky Q™ 5X16


(Sky Q™ advice)





Multiswitches which work with quad, octo & quatro LNBs. (Pro range) powered

EMP-Centauri 9X8
EMP-Centauri 9X12
EMP-Centauri 9X16
EMP-Centauri 9X20
EMP-Centauri 9X24
EMP-Centauri 9X26


EMP-Centauri 9X40 (quatro LNB only)

Ethernet over coax multiswitches.

Ethernet, satellite and terrestrial over coax multiswitches. 10 outputs.

Distribution advice


(Please note - "Sky Q™" is a trade mark of Sky Television).

13 input 12 output powered multiswitch 13 input 40 output powered multiswitch Multiswitches which work with quad, octo & quatro LNBs. (Pro range) Powered

EMP Centauri 13X8
EMP Centauri 13X12
EMP Centauri 13X16
EMP Centauri 13X24
EMP Centauri 13X26

EMP Centauri 13X40



Distribution advice

17 input (4 satellite) multiswitches

Whyte 17X16



emp 5 in 5 out amp slope amp Primesat splitters stacker destacker Triax digital TDX satellite headend.. Wideband LNB splitter. Split a wideband LNB to 2 receivers.
Twin wideband amplifier.

EMP-Centauri 5 in 10 out active splitter.
Primesat 5 in 15 out active splitter.
Triax 10-30 Tap.
Triax 5 in and 10 out splitter.
Triax 5 in and 20 out splitter.
Triax 5 in and 10 out active splitter. Built in aerial combiner.
EMP 5 in and 5 out amp.
4 in 4 out 40dB launch amp
Wolsey terrestrial amp.
Triax TV, FM & DAB terrestrial amp.
Satellite slope amp.
Variable attenuator.
DC Blocks.
TV, FM & DAB combiner.

External equipment cabinet.
Stacker De-Stacker Plus. Send two outputs from an LNB or two outputs from a multiswitch down one cable
Feeding CCTV into a multiswitch.
Quatro LNBs.
Quatro LNB cable.

Satellite Headend.
Triax digital TDX satellite headend.

HD Modulator
Send HD through your normal coax distribution system
Primesat easy fit 60cm dish Sqish flat plate antenna with quatro LNB Triax heavy duty dishes Triax hg5 aerial Antiference 5 element FM aerial

Dish kit kits with quatro LNBs.

Primesat 60cm easy fit dish

Primesat 80cm easy fit dish

Triax heavy duty 60cm,

Triax heavy duty 70cm,

Sqish flat plate antenna with quatro LNB

2, and 3 satellite dish kit kits with quatro LNBs.

85cm dishes 2 satellite, 2 quatro LNBs and multiswitch

85cm dishes 3 satellite, 3 quatro LNBs and multiswitch

Aerials.
Aerials menu page
Triax multi element TV aerial
Triax omni DAB aerial
Triax omni FM aerial
Antiference 4 element DAB aerial
Antiference 5 element FM aerial
Antiference combined FM DAB aerial


Distribution advice


Single F connector outlet plate.

Maxview single F connector outlet plate.

Twin F connector outlet plate.

UHF connector outlet plate.

F connector and UHF outlet plate.

Triax TV, radio & satellite triplexed outlet plate

Triax TV, radio and twin satellite quad outlet plate

Triax TV, radio, return, phone and twin satellite outlet double plate

Maxview diplexing plate

Ethernet multiswitch plate. Satellite, terrestrial and Ethernet over coax

Single back box. Satellite, terrestrial and Ethernet over coax

Fouble back box. Satellite, terrestrial and Ethernet over coax








































Standard fitting outlet plates



F connector outlet plate.








Maxview F connector outlet plate.








Twin F connector outlet plate.









Wolsey IEC aerial outlet plate.









Wolsey F & IEC aerial outlet plate.






Standard fitting outlet plates for multiswitches



Triax TV, radio & satellite triplexed outlet plate









Triax TV, radio and twin satellite quad outlet plate










Triax TV, radio, return, phone and twin quad satellite outlet double plate











maxview TV and radio diplexing plate












Satellite and Ethernet plate









Single back boxes.












Double back boxes.









Distribution advice





























Build your own grids

Build your own double grid from many options with only 1 "add to cart"



Build your own single grid from many options with only 1 "add to cart"



Grids sold separately

Single modular grid






Double modular grid






Modules sold separately.




F connector module







UHF IEC connector female module









UHF IEC connector male module









Cat 5e module









Cat 6 module









telephone slave module







telephone master module









blanking plate module







HDMI module





For multiswitches




Diplexing plate module








Triplexing plate module







Quad plate module




Back boxes.




Single back boxes.









Double back boxes.







More grids sold separately

Single space single grid


Fibre products for long cable runs or many splits.

Optical fibre satellite menu page

SwitchBlade multiswitches with direct fibre input virtual quatro converter virtual quatro converter virtual quatro converter fibre splitters fibre attenuators SwitchBlade multiswitches with direct fibre input. FC/PC

8 output SwitchBlade multiswitch

16 output SwitchBlade multiswitch

8 sat+ additional satellite input module

16 sat+ additional satellite input module

Converters. FC/PC

Quatro virtual converter.


Quad virtual converter.



Cables, splitters and attenuators.

Optical fibre cables FC/PC.



Optical fibre splitters. FC/PC.


Optical fibre cables SC/APC.



Optical fibre splitters. SC/APC.


Optical fibre back to back connector. FC/PC.
(To join 2 cables together)

Optical fibre attenuators. FC/PC.



The new OTX fibre kit shown below replaces the MDU, GTU and ODU products.





Satellite Fibre OTX Headend.

Available in standard and high output versions.
Available with or without a wideband LNB











OTO fibre splitter booster.







Wideband amplifier (SC/APC)









CCTV.

4 camera DVR kit.
4 camera DVR kit. (Special offer)
Triax 4 camera input dvr, 4 Triax 1080p bullet cameras and camera PSU


8 camera DVR kit.

8 camera DVR kit. (Special offer)
Triax 8 camera input dvr, 8 Triax 1080p bullet cameras and camera PSU


Distribution questions and answers.

I want to have multiple satellite points around the house
and multiple receivers. I also want to distrubute the TV from one receiver to all TVs how
can this be done. and -
How can I use Sky Q with standard multiswitches?

How can I run 2 x freesat 4K receivers using one dish and a wideband twin LNB?
How can I use 2 x freesat 4 K receivers and a Sky Q receiver from one dish and one LNB?
How can Sky Q be sent to multiple appartments from one dish.

ANSWER F7 (and see 7b below as well)

There are several parts to this question.

Input

To provide many satellite dish points, (e.g. Sky or freesat) around the house you either need a quatro LNB on your
dish or a quatro LNB dish kit. see dishes with quatro LNBs and a 5 input multiswitch
(multiswitches are usually situated in a loft or cupboard or central area.) See multiswitches.
(Please note our latest EMP multiswitches also work with quad LNBs or 4 outputs from an octo LNB.
Most other makes only work with quatro LNBs) The quatro or quad LNB (with 4 outputs) feeds the multiswitch
using 4 LNB cable - see 4 LNB cable Best to put two outlets in each room as it may be that twin tuner receivers
(record one channel and watch another) may be needed. (These are called twin tuner PVRs) If so use
the twin wall plates see outlet plates then scroll down to the twin units. Use twin cable to each room. see Twin cable
For (e.g.) 6 rooms a 12 output multiswitch would be used. Twin cable to each room. An aerial can be fed
into the 5th input of the multiswitch if required. Using a wall plate which has a diplexer built in, two
satellite points and an aerial point is available. The UHF aerial signal is added to the satellite signal
by the multiswitch and goes down the same wire as the satellite signal. If two or three aerials are required
e.g. TV, FM and DAB radio, a 3 way combiner can be fitted on the roof and the one cable from that unit goes
into the 5th input of the multiswitch. Again the appropriate wall plate is needed to separate them all out
again. See multiswitch combiner
Standard Sky, Sky+ Sky HD freesat and freesat HDR and other receivers can then be connected
to the F connector wall plate. Everything you may need is on the Multiswitches Menu Page.
Sky Q update October 2016.
Sky Q multiswitches are now available but it is now also possible to combine Sky Q multiswitches with standard
multiswitches. There are three options. Use only a Sky Q multiswitch, or use a Sky Q multiswitch with a standard
multiswitch, or use a Sky Q interface with a standard multiswitch. A Sky Q multiswitch (e.g. 5 in and 4 out) is
cascade-able. That means it has LNB loop-through. So it is really 5 in, 4 Sky Q outputs and 4 quatro LNB outputs
(the 5th output is terrestrial) which can link to a standard multiswitch. That means it can be introduced in
front of a standard multiswitch (between LNB and standard multiswitch.) Sky multiswitches will only work with
quatro LNBs and not with the quad LNBs which are on Sky mini dishes. The other option is the Sky Q interface.
This is connected to the output of a standard multiswitch. 4 short cables (the interface would sit beside the
multiswitch) coming from 4 of the outputs from a standard multiswitch connect to 4 inputs in the Sky Q interface.
The Triax interface converts these 4 inputs into the 2 Sky Q outputs and 2 normal outputs. Two rooms can then be
supplied with a Sky Q feed (remember a Sky Q feed from a Sky Q multiswitch or interface only needs one cable not two).
The rest of the rooms would be fed with standard outputs and so Sky HD, freesat and standard receivers
can be used in those rooms.

Summary of these questions-
Can you run 1 or 2 of the new recordable freesat 4K receivers and 1 or 2 of Sky Q receivers all from 1 dish AND have
access to all of the new features of these advanced receivers.
This answer also applies to running 2 x Freesat 4K receivers from 1 LNB or running 2 x Sky Q receivers from 1 LNB

Answers -
Research and putting together technical pieces of a puzzle to solve the problem. This is an interesting question
and we have a solution. The solution is a result of research here for months and will take quite a lot of explaining.
It requires some background information and so I am going to break down the explanation into blocks of information.
Suffice to say I don’t believe any other company has worked out a solution to this problem but this is right up
our street. Technical stuff like this is what we do every day and it is how we support our customers for 30 years.

1. You need a hybrid LNB on your dish. If you already have a hybrid LNB on you dish, no problem. If not, first
you must identify what kind of dish you have. There are 3 options.
a) If you have a Sky Mini dish that is less than 10 years old you can fit a Sky Mini dish hybrid LNB (most
people will have this option - a less than 10 year old Sky mini dish).
A Sky mini dish looks like – Sky Mini Dish and the (2+4) correct hybrid LNB is at –
Hybrid LNB for a Sky Mini Dish
b) If you have a standard dish you need a 40mm hybrid LNB.
A standard dish looks like this – Example of a Standard Dish
The 40mm hybrid LNB is at – hybrid LNB for a Standard Dish
c) If you have a Sky mini dish that is over 10 years old, the new Sky mini dish hybrid will not fit as 10
years ago Sky changed the design of their dishes. If this is the case you must change the dish. We would
recommend the dish is changed to a standard dish as they are higher quality. Note, with earlier Sky mini dishes,
the LNB had a tongue and slid into the end of the box section boom arm. Later Sky mini dishes the LNB fits
on top of the boom arm.

2. It is important to know what a hybrid LNB is. A hybrid LNB has 2 + 4 outputs, 2 outputs are the new
twin wideband LNB and 4 outputs are universal LNB outputs also called “Legacy” outputs. In other words,
these 4 outputs are a normal quad LNB.

3. The latest freesat 4K recordable receivers have new advanced features which only work from a wideband LNB.
If the new receiver was connected to a normal twin LNB and twin cable you would be able to record 1 channel while
watching another. If the new freesat 4K receiver is connected to a new wideband LNB, which is a new type of twin LNB,
again using a twin cable, you can record several channels while watching another. Sky Q has similar features and will
also work from a wideband LNB and have the same recording capabilities, however, since the wideband outputs are
being used by 1 or 2 freesat receivers we must use the quad outputs of the hybrid LNB for the Sky Q receiver. If
the 4 quad LNB outputs of the hybrid LNB are connected to a “Sky Q Interface”, you can then use 1 or 2 Sky Q master
boxes. A Sky Q interface has 4 inputs which connect to the quad LNB outputs of the hybrid LNB and 4 outputs to go to
1 or 2 Sky Q receivers See the Triax Sky Q interface at – Sky Q Interface
The reason a Sky Q interface is required is because Sky Q has an additional capability which a freesat 4K box
does not have. That is something called “dSCR”. It means if it is connected to a quad LNB through a Sky Q
interface, multiple channels can then be recorded while watching another.

4. In number 3 above, it explains how 1 or 2 Sky Q master receivers can be run from the 4 outputs of a
hybrid LNB using a Sky Q interface, however, we now need to consider how to run 2 x freesat 4K receivers
from the one set of twin wideband outputs from the hybrid LNB. This needs a wideband splitter - See
Wideband Splitter Unlike a normal twin LNB which contains 4 components of the satellite signal and cannot
be “split” to 2 receivers, each output of a wideband twin LNB carries only one component of the satellite
signal and so it can be split. You could use 2 x IF splitters, (one for each output) but a much better
solution / product is a professional Triax 2 in and 4 out wideband splitter. It is 2 splitters in 1 package.
This is a product which Triax uses for a different application but we realised it could be used to solve
this problem. Connect the wideband LNB into this splitter and it gives you 2 x wideband outputs to go to
your two freesat 4K receivers.

Summary. To run 1 or 2 freesat 4K receivers and 1 or 2 Sky Q receivers from 1 dish requires a hybrid LNB (£39.95),
a Triax professional wideband splitter (£39.95) a Sky Q interface (£124.95) and our telephone or email support
on how to connect it and set it all up. If you have a Sky mini dish which is over 10 years old, you will
need a standard dish and wall mount (£39.95) otherwise the hybrid LNB will not fit.

Output.

Distribution round the house needs a 2, 4, 6 amp or (preferably) professional 8 way amp and cabling.
See Professional 8 way amp and extra TV eyes.
This is to distribute TV from one receiver to other TVs around the house (one channel)

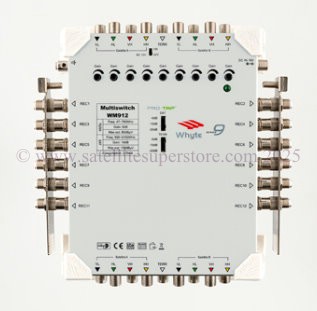

This can be done by feeding a cable from the room containing the sat receiver to the multiswitch location and
into the 3 way combiner then into the multiswitch. However, the problem with this method is that the multiswitch
will not permit the 9 volts to go through and the TV Eye or omni link system to work for control. It is better
therefore to have a completely separate output system with separate cabling for the distribution system
This would mean 3 cables to each room, two for the satellite and one for the distribution. TV eyes for Sky receivers
Sky accessories or omni link systems for freesat receivers or other receivers see the omni link kit
(and a modulator is required - same page or use an analogue Triax Trilink)
This will allow full control of the Sky or freesat system from all of the rooms (but only in UHF analogue).

Latest information on HD 1080p output distribution.

Triax HD Modulator with TV eye control

HD Modulator HD Modulator

HD Modulator

Important - Unlike many other modulators on the market, this one can be controlled using the TV eye system. It has
control built into it. (Some people already have a TV eye system in their home). Just put a tv eye on the end of the
cable going into the back of your (e.g. bedroom) TV and you can control the satellite receiver in the main room from
the bedroom. Also unlike other modulators, this one has and HDMI loop-through which means when the HDMI lead
goes into the modulator, it also loops out to go to the TV next to it. Most modulators do not have this function
and if not, an additional HDMI splitter is needed. No splitter is needed with this modulator.

The HD modulator, has an HDMI input and a coaxial cable output. Many houses already have a UHF distribution system.
A similar system in the past would take the coaxial output from the UHF (RF) connection of a receiver, maybe to an existing
distribution amplifier in the loft, then cables down to the rooms. This new HD modulator will work with your existing
distribution system. Satellite receivers now have an HDMI output. Connect the HDMI output from your satellite receiver
into the HD modulator. The coaxial output of the modulator can go direct to a second TV elsewhere in the house, or it
can go to a distribution amplifier (which may be in the loft) and then to many rooms. This coaxial cable then plugs into the
digital tuner input of your TV. All you then have to do is tune in the channels on your TV and one of the channels will be the
satellite receiver from the main room. This can be in full 1080p HD. Additional notes. The old UHF system in use for, probably
30+ years from an RF output was analogue and not very good quality. Usually there was an RF modulator built into the satellite
receiver and you had to tune in the analogue tuner of your TV set. Today many flat screen sets have both analogue and digital
tuners. Since there is no analogue TV any more the analogue tuner only tends to be used for tuning the old UHF, RF distribution
system but the new HD modulator works through the digital tuner of the TV in full HD. There have been some HD distribution
system which use CAT 5 cable but this system of HD over coax means that the old existing distribution system using coax can
be used and will it all work in full HD. There is an aerial loop through on the back of the modulator (just the same as the
old analogue loop through in the back of a satellite receiver with RF in and out) and so if the TV aerial can go into the
modulator, the aerial will then be carried with the satellite receiver signal to every TV through the distribution system in
the usual way. Also remember out dedicated telephone support line just for our customers is there to help you

A TV eye is included but additional TV eyes can
be added.
Click here to order.

from any room. Also remember out dedicated telephone support line just for our customers is there to help you

Also see the Triax menu page.



(All prices on this web site include VAT.)

Links to menu pages,

Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!

Menu pages.

Satellite receivers menu page.
Fixed satellite dishes menu page.
Motorised satellite dishes menu page.
2, 3 or 4 satellite on a fixed dish menu page.
Clear transparent dishes menu page.
Motorised satellite systems menu page.
V Box menu page.
Satellite dish motors menu page.
Satellite systems menu page.
Caravan / Motorhome / RV Satellite menu page.

Ku, Ka, Universal and programmable LNBs menu page.
feedhorns menu page.
C Band LNBs and feedhorns menu page.

Vu+ receivers menu page.
Freesat receivers menu page.
Humax receivers menu page.
Sky receivers menu page.
Sky accessories menu page.
Technomate receivers menu page.
French TV and Italian TV receivers menu page.
Edision receivers menu page.
Technisat receivers menu page.
Sab receivers menu page.
Twin tuner receivers menu page.
High definition receivers menu page.
Linux receivers menu page.

Multiswitches menu page.

Satellite finder meters menu page.
Wall mounts and ground stands menu page.
Installation equipment menu page.
Cable menu page.
Diseqc switches and motors menu page.

Optical LNBs and equipment menu page.
Satellite accessories menu page.
TV, FM and DAB aerials menu page.
cams menu page.
adult cards menu page.
Index of all products menu page.



See our other web site at- www.primesat.eu

This site includes many products that are exclusive to the Satellite Superstore.
The site contains -
• Products that we manufacture (e.g. We have manufactured heavy duty wall mounts and ground stands since 1991).
• Selected products which have our own Primesat brand name and have been prepared to our specifications.
• Selected products where we have been appointed the authorised UK or European distributor by the manufacturer.
www.primesat.eu is an information site. Here you will find full specifications and many detailed pictures.
To buy any of these products, simply order them on this web site.



Link to our own satellite museum site

Satellite Museum. A museum of vintage satellite receivers.
See
www.satellitemuseum.com

Satcom 7700 satellite receiver.

For old satellite receivers with knobs on and read about "A History Of Satellite TV".

Also see www.rewindmuseum.com. A Museum of vintage consumer electronics.
Vintage reel to reel video recorders. Vintage VHS and Betamax VCRs. Vintage video cameras. Vintage
Laser Disc. Vintage Computers. Old telephones. Old brick mobile phones. Vintage Hi Fi, Old reel
to reel audio and early audio cassette decks. Including, the history time line of vintage
consumer electronics ... and much more .....

Sony 2400 portable reel to reel video

It is well worth a visit.
Only The Satellite Superstore brings you
great products, advice and it's own museum.


Rewind Museum



You may be interested in two other web sites.

Hard tonneau cover for the 1947-53 Chevy truck. Hard tonneau cover for the 1947-53 Chevy truck.

www.1952chevytruck.com
This web site shows all of the restoration process and the modifications to this truck.
In addition, there is a hard high quality tonneau cover on a new web site
at www.classictonneaucover.com for the 1947-53 Chevy truck.


www.classictonneaucover.com



Contacting us.
Unlike many other companies we are happy to answer questions on the phone.
Tel. (UK) 01207 544664 and 01207 544224
International Tel. + 44 1207 544664.
Before sending questions via e-mail please check-out our Frequently Asked Questions as this could save time.
If you have any questions & comments regarding this site's content, or you need advice please ....
click here to go to our contact forms.



Copyright © 2019 Vision International. All rights reserved.
