Edision HDMI HD Modulator. 1080p
This HD modulator, has an HDMI input and a coaxial cable output. Many houses already have a UHF distribution system.
A similar system in the past would take the coaxial output from the UHF (RF) connection of a receiver, maybe to an existing
distribution amplifier in the loft, then cables down to the rooms. This new HD modulator will work with your existing
distribution system. Satellite receivers now have an HDMI output. Connect the HDMI output from your satellite receiver
into the HD modulator. This uses the only HDMI output and so it is now not available to go to the TV next to it. There are
two solutions of sending the HD signal to both the TV and the modulator, 1. buy an HDMI splitter
. This splitter converts
one HDMI output to two HDMI outputs. Then one HDMI cable can continue to go to the TV next to your satellite receiver and the
other to the HD modulator (optional splitter below). 2. Only connect the one HDMI lead to the modulator, the output then via
coax to the distribution amplifier. From there send the signal via coax to many TVs in many rooms and also back to the TV next
to the satellite receiver. With the second plan an HDMI splitter is not needed but a coax cable back from the distribution
amplifier is. To summarise, the coaxial output of the modulator can go direct to a second TV elsewhere in the house, or it
can go to a distribution amplifier (which may be in the loft) and then to many rooms. This coaxial cable then plugs into the
digital tuner input of your TV. All you then have to do is tune in the channels on your TV and one of the channels will be the
satellite receiver from the main room. This can be in full 1080p HD. Additional notes. The old UHF system in use for, probably
30+ years from an RF output was analogue and not very good quality. Usually there was an RF modulator built into the satellite
receiver and you had to tune in the analogue tuner of your TV set. Today many flat screen sets have both analogue and digital
tuners. Since there is no analogue TV any more the analogue tuner only tends to be used for tuning the old UHF, RF distribution
system but the new HD modulator works through the digital tuner of the TV in full HD. There have been some HD distribution
system which use CAT 5 cable but this system of HD over coax means that the old existing distribution system using coax can

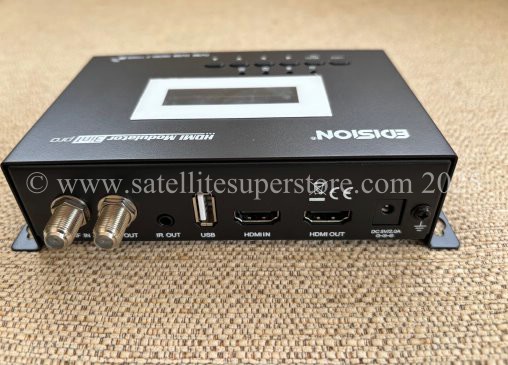

be used and will it all work in full HD. There is an aerial loop through on the back of the modulator (just the same as the
old analogue loop through in the back of a satellite receiver with RF in and out) and so if the TV aerial can go into the
modulator, the aerial will then be carried with the satellite receiver signal to every TV through the distribution system in
the usual way. Please also note, for control you may also need an Omni Link kit
. Then you can change channels etc.
from any room. Also remember out dedicated telephone support line just for our customers is there to help you
